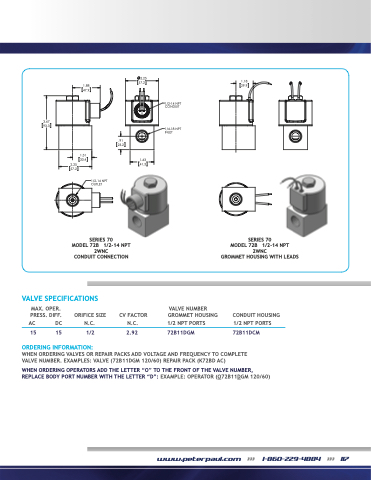

Page 119 - Peter Paul 2019 Catalog

3.67 93.3
1/2-14 NPT CONDUIT
1/4-18 NPT INLET
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF.
AC DC
15 15
ORIFICE SIZE N.C.
1/2
CV FACTOR N.C.
2.92
VALVE NUMBER GROMMET HOUSING
1/2 NPT PORTS
72B11DGM
ORDERING INFORMATION:
2.25 57.2
1.63 41.3
1.88 47.9
1.31 33.4
2.25 57.2
1.18 29.9
1/2-14 NPT OUTLET
SERIES 70 MODEL 72B 1/2-14 NPT
SERIES 70
SERIES 70 MODE2LW72NBC 1/2-14 NPT
MODEL 72B 1/2-14 NPT
CONDUIT CO2WNNECCTION CONDUIT CONNECTION
2WNC
.91 23.2
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (72B11DGM 120/60) REPAIR PACK (K72BD AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (O72B11DGM 120/60)
SERIES 70
MODEL 72B 3/8-18 NPT
2WNC
GROMMET HOUSING WITH LEADS
CONDUIT HOUSING 1/2 NPT PORTS
72B11DCM
GROMMET HOUSING WITH LEADS
www.peterpaul.com >>> 1-860-229-4884 >>> 117
