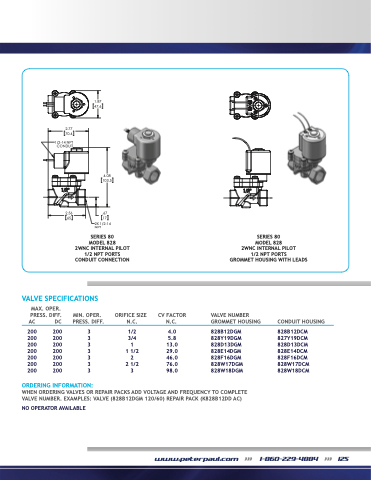

Page 127 - Peter Paul 2019 Catalog

2.77 70.4
1/2-14 NPT CONDUIT
1.87 47.6
4.08 103.5
VALVE SPECIFICATIONS
MAX. OPER. PRESS. DIFF. AC DC
200 200
200 200
200 200
200 200
200 200
200 200
200 200
MIN. OPER. PRESS. DIFF.
3 3 3 3 3 3 3
ORIFICE SIZE N.C.
1/2 3/4 1
1 1/2 2
2 1/2 3
CV FACTOR N.C.
4.0
5.8 13.0 29.0 46.0 76.0 98.0
VALVE NUMBER GROMMET HOUSING
828B12DGM 828Y19DGM 828D13DGM 828E14DGM 828F16DGM 828W17DGM 828W18DGM
CONDUIT HOUSING
828B12DCM 827Y19DCM 828D13DCM 828E14DCM 828F16DCM 828W17DCM 828W18DCM
ORDERING INFORMATION:
2.56 .67
65
17
2X 1/2-14 NPT
GROMMET HOUSING WITH LEADS CO2WNNDCUITNCTEORNANLECPITLIOTN 2WNC1/IN2T"ENRPNTAPLOPRILTOST
SERIES 80
SERIES 80 MODEL 828
SERIES 80 MODEL 828
2WNC INTERNAL PILOT
2WNC INTERNAL PILOT 1/12/"2NPTPORTS
MODEL 828
MODEL 828
CONDUIT CONNECTION
1/2 NPT PORTS GROMMET HOUSING WITH LEADS
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (828B12DGM 120/60) REPAIR PACK (K828B12DD AC)
NO OPERATOR AVAILABLE
