1/8-27 NPT N.O.
3.27 83
1/8-27 NPT N.C.
1.50 38.1
1.44 36.6
1/8-27 NPT COM
1/2-14 NPT CONDUIT
1.63 41.4
.23 MFT
.20 5 .40 10.1
1.00 25.3
.30 7.5
.59 15
2X 8-32 UNC-2B

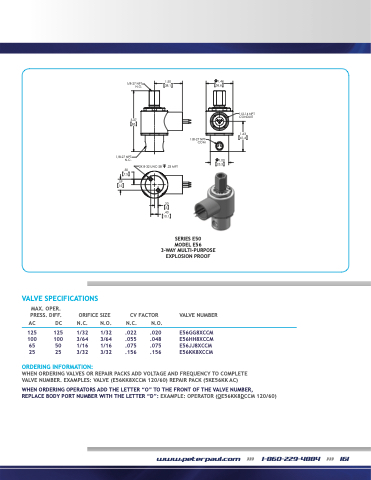

MODEL E56 3-WAY MOUDLETIL-PEU5R6POSE
SERIES 50
SERIES E50
3E-XWPALYOMSIUOLNTI-PRUOROPOFSE EXPLOSION PROOF
VALVE SPECIFICATIONS
MAX. OPER.
PRESS. DIFF. ORIFICE
AC DC N.C.
125 125 1/32 100 100 3/64 65 50 1/16 25 25 3/32
ORDERING INFORMATION:
SIZE CV FACTOR N.O. N.C. N.O.
1/32 .022 .020 3/64 .055 .048 1/16 .075 .075 3/32 .156 .156
VALVE NUMBER
E56GG8XCCM E56HH8XCCM E56JJ8XCCM E56KK8XCCM
WHEN ORDERING VALVES OR REPAIR PACKS ADD VOLTAGE AND FREQUENCY TO COMPLETE VALVE NUMBER. EXAMPLES: VALVE (E56KK8XCCM 120/60) REPAIR PACK (5KE56KK AC)
WHEN ORDERING OPERATORS ADD THE LETTER “O” TO THE FRONT OF THE VALVE NUMBER, REPLACE BODY PORT NUMBER WITH THE LETTER “D”: EXAMPLE: OPERATOR (OE56KK8DCCM 120/60)
www.peterpaul.com >>> 1-860-229-4884 >>> 161
