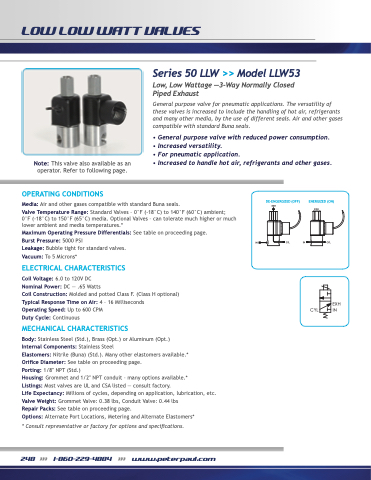

Page 250 - Peter Paul 2019 Catalog
P. 250

   LOW LOW WATT VALVES
   Series 50 LLW >> Model LLW53 Low, Low Wattage —3-Way Normally Closed
Piped Exhaust
General purpose valve for pneumatic applications. The versatility of these valves is increased to include the handling of hot air, refrigerants and many other media, by the use of different seals. Air and other gases compatible with standard Buna seals.
• General purpose valve with reduced power consumption. • Increased versatility.
• For pneumatic application.
• Increased to handle hot air, refrigerants and other gases.
 Note: This valve also available as an operator. Refer to following page.
OPERATING CONDITIONS
Media: Air and other gases compatible with standard Buna seals.
Valve Temperature Range: Standard Valves – 0°F (-18°C) to 140°F (60°C) ambient;
0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
Maximum Operating Pressure Differentials: See table on proceeding page.
Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves. Vacuum: To 5 Microns*
ELECTRICAL CHARACTERISTICS
Coil Voltage: 6.0 to 120V DC
Nominal Power: DC — .65 Watts
Coil Construction: Molded and potted Class F. (Class H optional) Typical Response Time on Air: 4 – 16 Milliseconds
Operating Speed: Up to 600 CPM
Duty Cycle: Continuous
MECHANICAL CHARACTERISTICS
Body: Stainless Steel (Std.), Brass (Opt.) or Aluminum (Opt.) Internal Components: Stainless Steel
Elastomers: Nitrile (Buna) (Std.). Many other elastomers available.* Orifice Diameter: See table on proceeding page.
Porting: 1/8′′ NPT (Std.)
Housing: Grommet and 1/2′′ NPT conduit – many options available.*
Listings: Most valves are UL and CSA listed — consult factory.
Life Expectancy: Millions of cycles, depending on application, lubrication, etc. Valve Weight: Grommet Valve: 0.38 lbs, Conduit Valve: 0.44 lbs
Repair Packs: See table on proceeding page.
Options: Alternate Port Locations, Metering and Alternate Elastomers*
* Consult representative or factory for options and specifications.
DE-ENGERGIZED (OFF)
EXH
ENERGIZED (ON)
EXH
                                                                                                IN CYL IN CYL
EXH CYL IN
