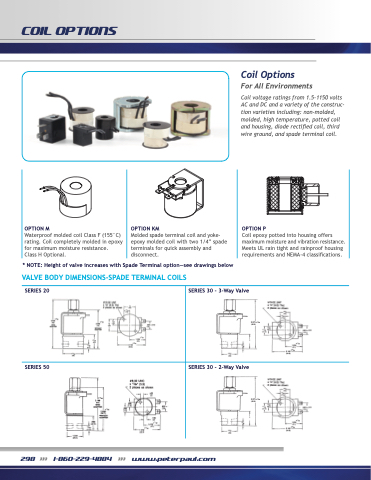

 COIL OPTIONS
   Coil Options
For All Environments
Coil voltage ratings from 1.5-1150 volts AC and DC and a variety of the construc- tion varieties including: non-molded, molded, high temperature, potted coil and housing, diode rectified coil, third wire ground, and spade terminal coil.
                                                                                                                                                                                                                                                                                                                               OPTION M
Waterproof molded coil Class F (155°C) rating. Coil completely molded in epoxy for maximum moisture resistance.
Class H Optional.
OPTION KM
Molded spade terminal coil and yoke- epoxy molded coil with two 1/4” spade terminals for quick assembly and disconnect.
OPTION P
Coil epoxy potted into housing offers maximum moisture and vibration resistance. Meets UL rain tight and rainproof housing requirements and NEMA-4 classifications.
* NOTE: Height of valve increases with Spade Terminal option—see drawings below
VALVE BODY DIMENSIONS-SPADE TERMINAL COILS
  SERIES 20 SERIES 30 - 3-Way Valve
SERIES 50 SERIES 30 - 2-Way Valve
