20系列 >>型号23 (管道排放)

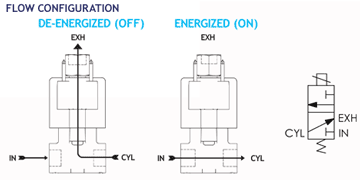

二位三通常闭型管道排放式

一系列具有选项和卓越成熟性能的阀门。应用中的标杆。介质为空气，水或其他与标配的丁腈橡胶相兼容的流体。热水，蒸汽，汽油和其他油需要特殊密封材料。
• 最初为流体动力工业创造的一流阀门。
• 重型且由不锈钢制成。
• 真正的主力，具有成熟的性能。
•具有所有阀门可用的最多选项。
• 节流孔径范围从1/32"到1/4"。

PDF icon Model-23pip.pdf

Tabs

Operator Drawings
Operator Drawings:

Series 20 OPERATORS CONDUIT


MODEL 23
3WNC 1/8-27 NPT PIPED EXHAUST CONDUIT CONNECTION

MODEL 23
3WNC 1/4-18 NPT PIPED EXHAUST CONDUIT CONNECTION


Series 20 OPERATORS DIN


MODEL 23
3WNC 1/8-27 NPT PIPED EXHAUST DIN STYLE COIL

MODEL 23
3WNC 1/4-18 NPT PIPED EXHAUST DIN STYLE COIL


Series 20 OPERATORS EXPLOSION PROOF


MODEL 23
3WNC 1/8-27 NPT PIPED EXHAUST EXPLOSION PROOF

MODEL 23
3WNC 1/4-18 NPT PIPED EXHAUST EXPLOSION PROOF


Series 20 OPERATORS GROMMET


MODEL 23
3WNC 1/8-27 NPT PIPED EXHAUST GROMMET WITH LEADS

MODEL 23
3WNC 1/4-18 NPT PIPED EXHAUST GROMMET WITH LEADS


Series 20 OPERATORS YOKE LEADS


MODEL 23
3WNC 1/8-27 NPT PIPED EXHAUST MOLDED COIL WITH YOKE

MODEL 23
3WNC 1/4-18 NPT PIPED EXHAUST MOLDED COIL WITH YOKE


Series 20 OPERATORS YOKE SPADE


MODEL 23
3WNC 1/8-27 NPT PIPED EXHAUST SPADE COIL WITH YOKE

MODEL 23
3WNC 1/4-18 NPT PIPED EXHAUST SPADE COIL WITH YOKE


* Consult representative or factory for options and specifications
